What You Need to Do for Configuring SonicWall VPN Client

Thousands of organizations, these days consider SonicWALL hardware to satisfy their firewall and network transitioning needs. Sonicwall firewalls also force effective VPN links for you, which provide the secure distant access for everybody from mobile employees to professional staff. Here are the most frequent steps necessary for configuring SonicWall VPN Client associations. While this post explains administering SonicWall VPN Client tunnels using the manufacturer’s popular expert 1260 series router, the steps are very similar to other SonicWALL models, too.

How to Configure SonicWall VPN Client

Essentially, there are three steps to the procedure: configuring the SonicWALL firewall, creating SonicWall VPN Client accounts and setting up and configuring the SonicWALL VPN client.

Configuring Your Router

Sonicwall’s Group VPN service simplifies configuring secure distant connections. Permit SonicWall Group VPN using the SonicWall VPN Client wizard by pursuing these steps:

• Get on the SonicWALL device.
• Go through the VPN button.
• Click on the SonicWall VPN Client n coverage wizard button; the pleasant to the SonicWall VPN wizard display will appear.
• Click next.

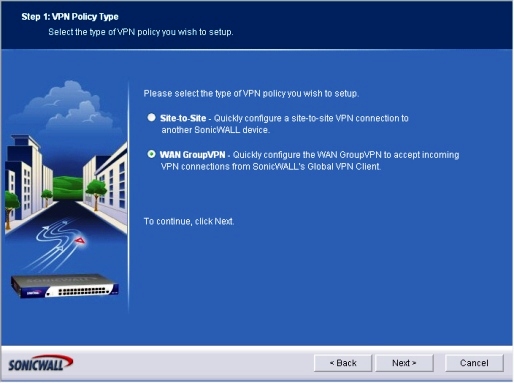

• Specify whether you intend to build a site-to-site VPN for you (such as you may desire to do when hooking up a SonicWall wireless router to some other SonicWall device) or a wan group VPN in order to permit incoming VPN cable connections to the SonicWall firewall. In this example we’re creating VPN cable connections to allow distant employee gain access to, so we have to choose the wan group VPN radio button and click on the next button. (Shape 1)

Identification Stage

• Administrators must identify whether a site-to-site or wan group VPN insurance plan is usually to be created.
• The IKE period 1 key method display screen appears in front of you. Identify whether you intend to use a default key or use a pre-shared key. Take note of the pre-shared key if you decide on that option, then click next.
• The security adjustments menu shows up. In addition to specifying the encryption and authentication methods, drop-down bins show up for specifying the DH (Diffie-hellman) key group (SonicWall devices organizations 1, 2 and 5) and life. Typically SonicWall’s default adjustments work well for some organizations.
• After hitting next, an individual authentication menu looks. Administrators must identify whether end-user authentication should be put in place. Ensure the permitted user authentication container is checked and choose respected users to ensure only the respected users you designate later can hook up to the organization’s network using the SonicWall VPN Client. Then, click next.
• The menu of the Configure Digital IP Adapter will come next. The exclusive IP adapter is employed to acquire special IP addresses when attaching to the SonicWall device, permitting the client to seem to be on the inner Lan. Check the pack if you want to allow the electronic IP adapter and click next.
• The wan group VPN construction summary menu looks. The confirmation display reviews the configurations which will be implemented by clicking on the apply button. Click on the apply button to complete permitting the SonicWall VPN Client configurations.
• The SonicWALL device will store the SonicWALL construction, then screen a congratulatory note saying the SonicWall VPN Client wizard completed effectively.

Give Permissions

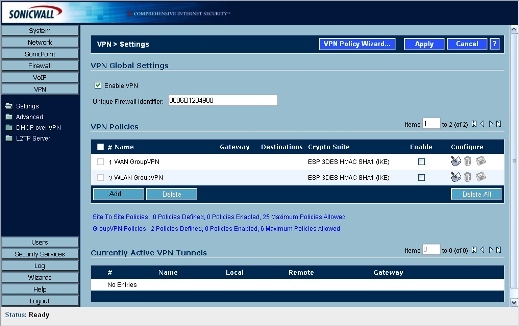

• As the SonicWALL creates the SonicWall VPN Client, it generally does not permit it by default. Log back to the SonicWALL device and click on the SonicWALL’s VPN button, and then check the permit box to switch on the VPN. (Shape 2)

• Do not forget to allow SonicWall VPN Client regulations from the VPN | settings display on the SonicWall device.
• You can change a vpn’s options and configuration anytime by logging into the SonicWALL router, visiting SonicWall VPN Client and pressing the configure icon (the pencil and newspaper icon) associated with each VPN entrance.

Specifying certified VPN users

The next thing is to identify those users certified to gain access to the VPN. To take action:

• Get on the SonicWALL device.
• Click on the user’s button.
• Now click on the local user’s button.
• Also, click on the add button.

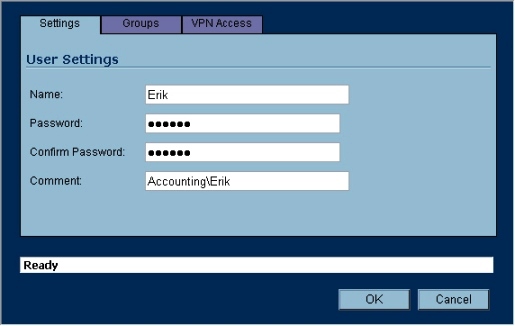

• Within the options tab, type in the user’s name, a security password and any remarks to help identify an individual account. (Shape 3)

• Supply user home elevators the configurations tab.
• Moreover, from the team’s tab, designate group memberships for an individual.

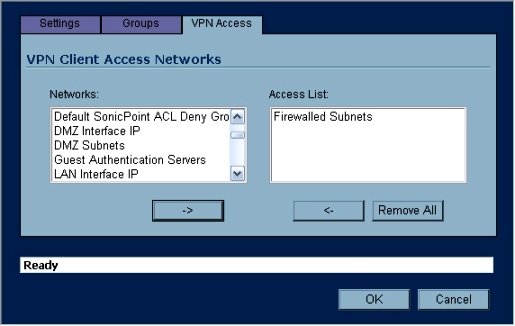

• From the VPN gain access to tab, designate the networks you want the user to gain access to. (Shape 4)

• A multitude of network options are present; make your options by highlighting entries and pressing the equivalent arrow buttons.
• Click fine to complete an individual configuration.

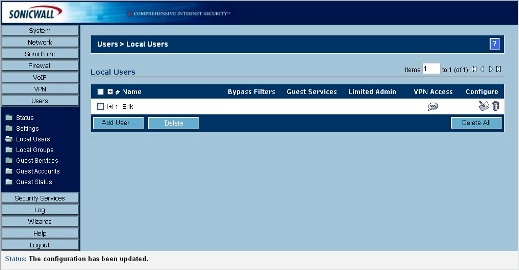

• Once an individual account is established, the entry can look within the SonicWALL’s users | local users display screen, as shown here.
• You may make edits to the user’s bank account (body e) anytime by hitting the configure icon (the pencil and newspaper image) associated with each user’s bill within the SonicWALL’s users | local users menu.

Putting in the SonicWall VPN Client Global

• Now you’re prepared to mount the SonicWALL global VPN consumer software on the finish user’s system. Follow these steps to configure the finish user consumer:
• Download the SonicWall VPN Client global executable at the end of the article. Once you have downloaded the document, double-click it to get started putting in the VPN customer.
• The preparing installation window can look. When it completes, the pleasant to the SonicWALL install shield wizard menu will screen. Click next.
• Next, you will see a warning concept indicating that antivirus and firewall programs must be impaired to set up the SonicWall VPN Client global. Disable such programs and click next.
• Specify the positioning of the SonicWALL global VPN consumer. By default, SonicWALL’s install shield will place the data in the c:\program data files\sonicwall global VPN consumer index. Click next to continue (or click on the browse button, identify the directory you intend to use, and then click next).
• Click install to set up the Sonicwall global VPN consumer in the directory website you specified within the last step.

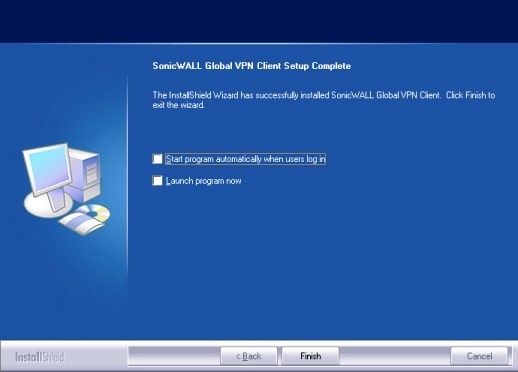

• The installation program will mount the VPN customer, tracking its improvement as it completes. When it surface finishes, it will screen the SonicWALL global VPN customer setup complete display screen, which may include two checkboxes (Shape 6). Check the respected boxes if you want to get started on the VPN consumer automatically when users sign in and launch this program immediately after doing the wizard. Then, click finish off.

• Check the supplied bins to automatically start the VPN interconnection when users sign in and launch this program immediately after concluding setup.
• House windows firewall may obstruct the SonicWall VPN Client Global. If house windows firewall reveals a warning subject matter, and then click Unblock.

Also Check, How do computer viruses make money

Run Wizard

• The new interconnection wizard can be observed. Click next.

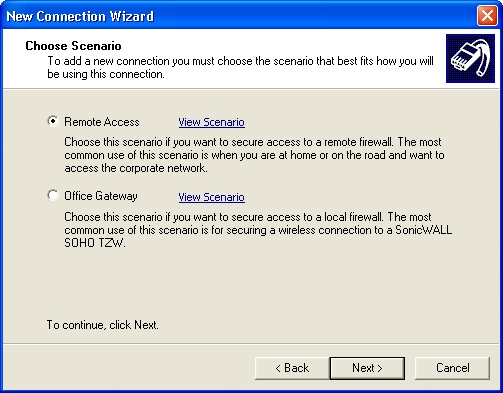

• The choose circumstance menu shows next. Designate whether you intend to implement remote gain access to or an office gateway. Choose office gateway if you are joining two SonicWALL devices. Furthermore, choose distant access if you want to allow secure connection for remote personnel. As we’re permitting remote gain access to, we’ll choose that option and click next. (Shape 7)

• Specify if the VPN connection has been used to provide remote control access or even to hook up two SonicWALL devices (office gateway).
• Identify the SonicWALL’s IP or domain, provide an interconnection name and click next.
• The concluding the new interconnection wizard menu looks next. Check the correct boxes to make a desktop shortcut for the new interconnection and automatically permit the bond whenever the finish consumer launches the SonicWALL global VPN customer. Then, click carry out.
• The SonicWALL global VPN consumer is then created. Moreover, to hook up to the VPN, customers need only double-click the SonicWall VPN Client Global and enter in any required qualifications. Much like configuring VPNs and customers, the end user can change a VPN connection’s options and configuration anytime by right-clicking it from within the SonicWall VPN Client Global screen and selecting properties.
